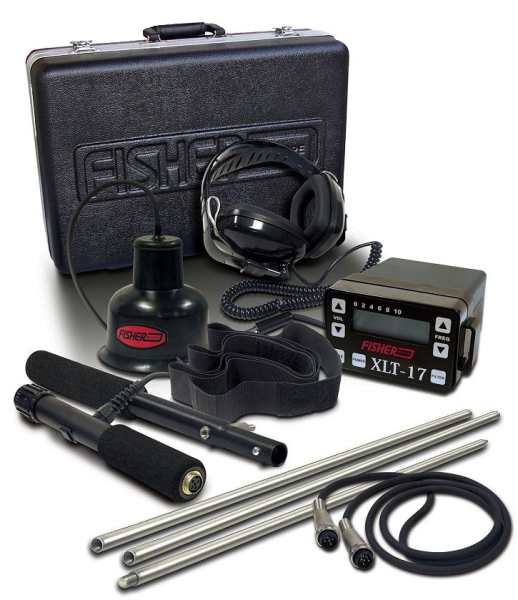

XLT-17 Liquid Leak Detector

FEATURES

•  Detects and pinpoints liquid leaks in pipes
•  4 Frequency Filters: Low Pass, High Pass, Band Pass and All Pass
•  Last setting memory feature
•  Touch-control keypad
•  Shielded sensor for reduced response to outside noise
•  Improved headset for clearer sound response
•  Automatic battery test – real time voltage level
•  Operates on two 9 volt batteries
•  Compact control box that can be worn around the neck or over the shoulder with an attachable strap
•  Heavy duty carrying case

SPECIFICATIONS

•  Operating Frequency:
•  60 Hz – 6 kHz, Gain = 60 db
•  20 Hz – 60 Hz, Gain > 55 dB
•  Filter Types and Frequency Ranges:
•  All Pass: 60 Hz to 6 kHz
•  Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz
•  High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz
•  Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz
•  Output Indications:
•  Audio: High performance headphones (64 ohms)
•  Visual: LCD bar graph and 2-digit numeric display
•  Grade of Protection: Splash Proof
•  Battery Test: Automatic, real time battery level indicator
•  Battery Quantity/Type: 2 / 9V Alkaline
•  Battery Life: 50 Hours (approximately)
•  Carrying Case Dimensions: 21”x 6”x 14” (53.3 x 15.2 x 35.6 cm)
•  Weight: 10 lbs. (4.5 kg) (unit in carrying case)
